Press Tool Design
Precision-engineered stamping and forming solutions for sheet metal manufacturing
Press Tool Portfolio
Explore our precision-engineered press tools designed for sheet metal forming and stamping applications
Progressive Stamping Die
High-precision progressive die system for complex sheet metal components.
This advanced progressive stamping tool incorporates multiple stations for blanking, forming, piercing, and trimming operations. Engineered with hardened tool steel inserts and precision guide systems to ensure consistent part quality in high-volume production.
Technical Specifications:
- •Material: D2/M2 Tool Steel with special coatings
- •Type: Progressive 8-station die
- •Capacity: Up to 3mm mild steel
- •Stroke Rate: Compatible with 60-120 SPM presses
- •Applications: Automotive brackets and electrical components
Precision Compound Die
Multi-operation compound die for complex shapes in a single press stroke.
This compound die system performs multiple operations simultaneously, combining blanking, piercing, and forming in a single stroke. Designed with optimal clearances and advanced wear-resistant components for extended tool life.
Technical Specifications:
- •Material: Premium CR12MOV die steel
- •Configuration: 4-operation compound tooling
- •Tonnage: 80-150 ton press compatible
- •Tolerances: ±0.02mm on critical dimensions
- •Applications: Precision electronics and medical components

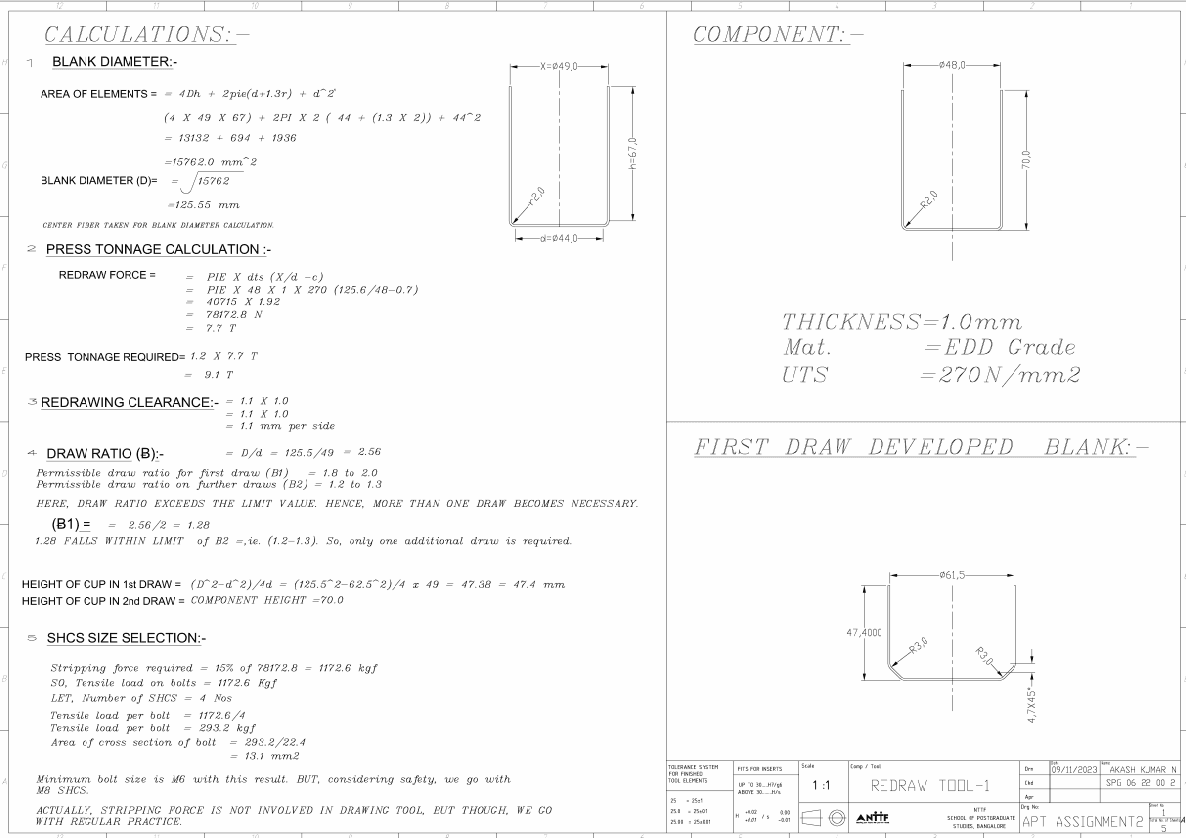

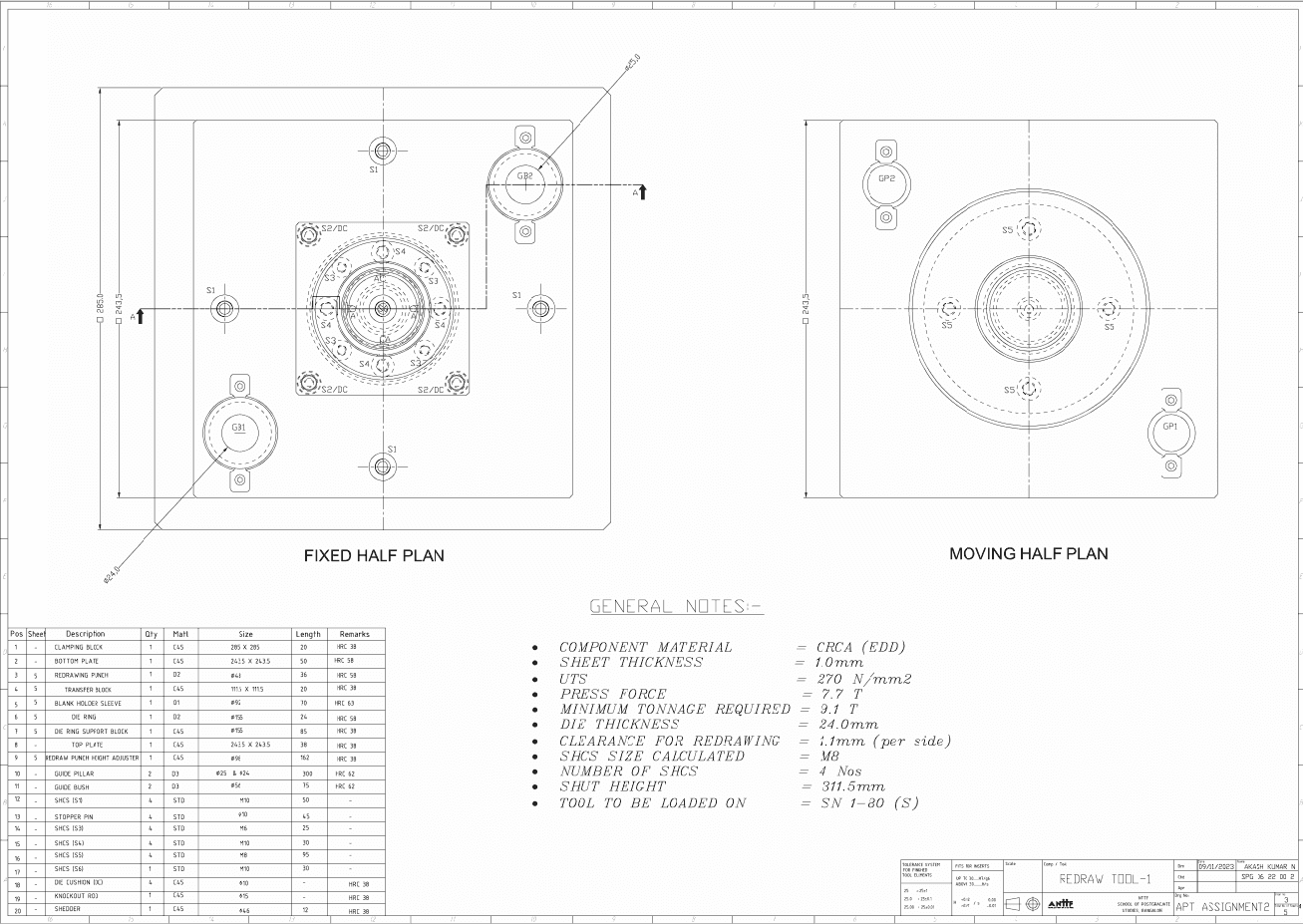

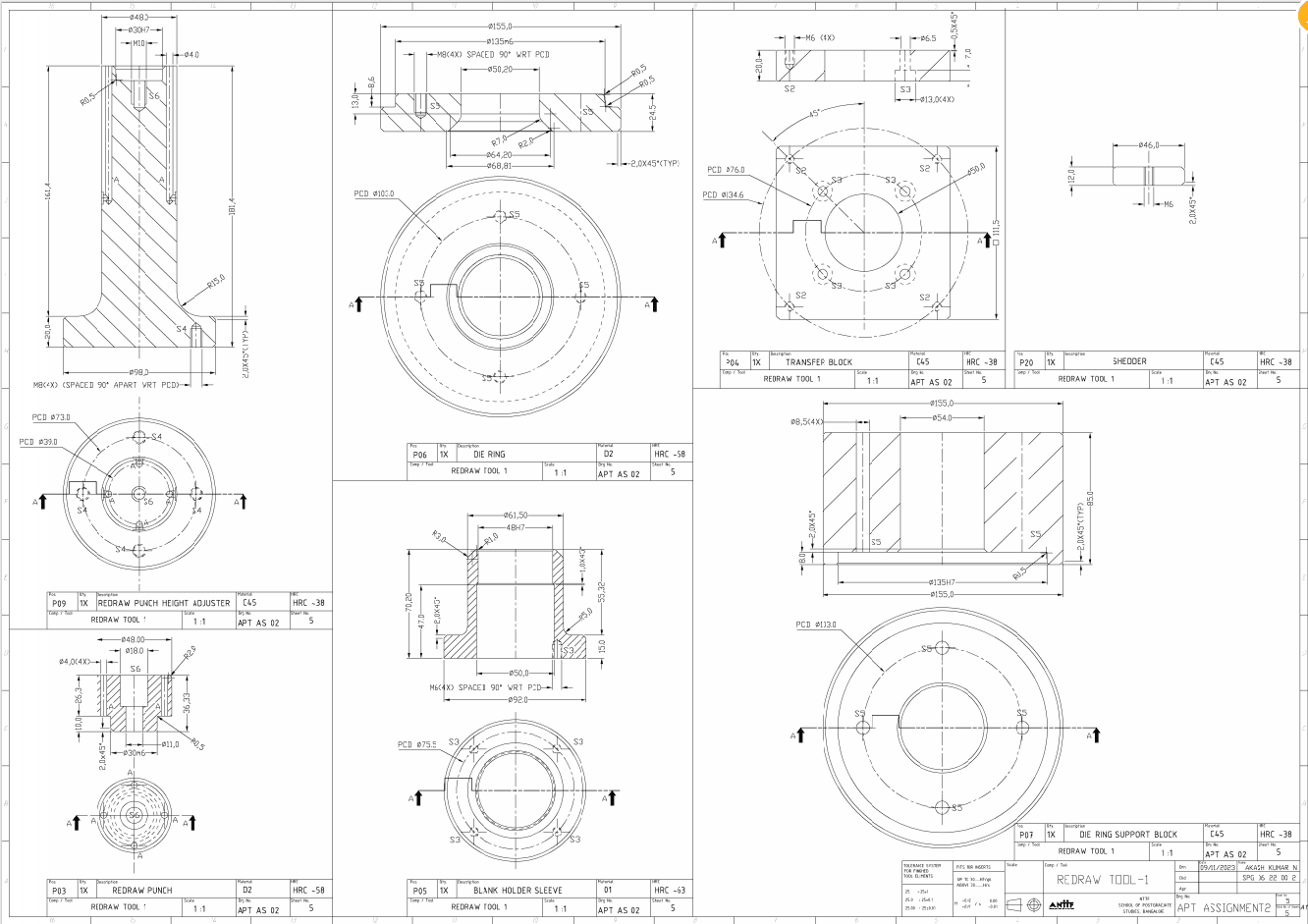

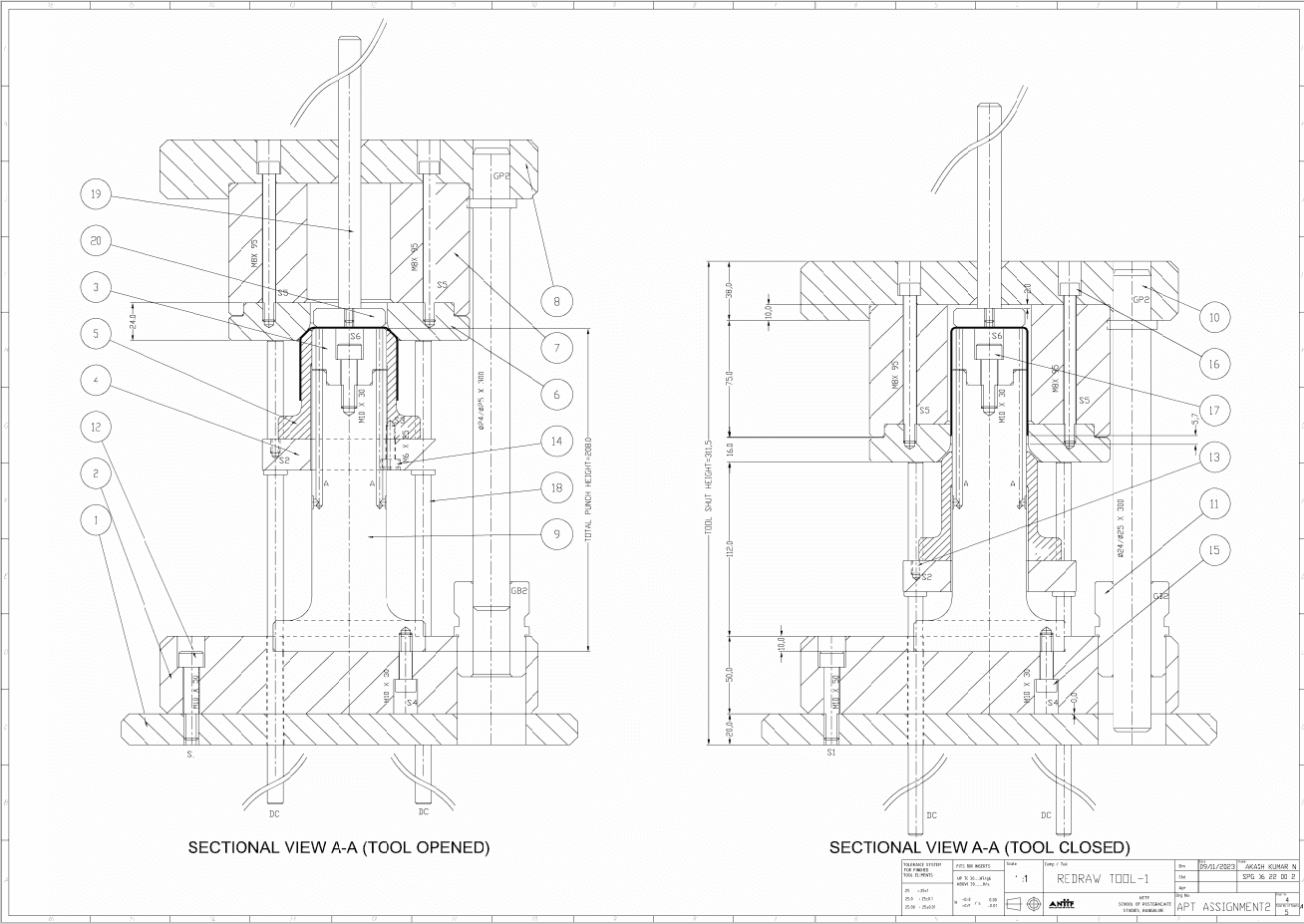

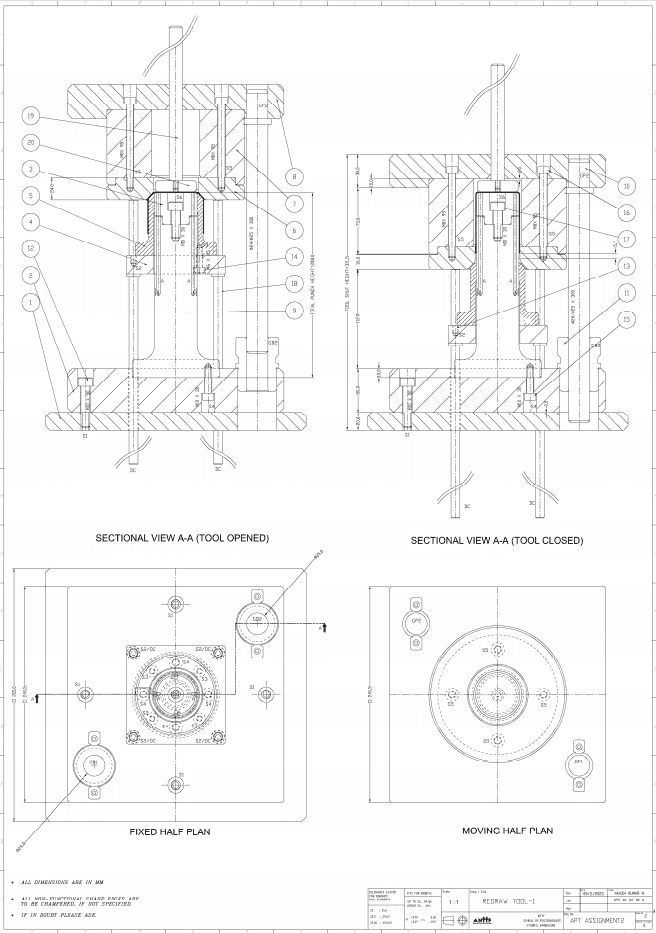

Redraw Tool
Precision-engineered redraw tool for deep drawn cylindrical components.
This specialized redraw tool is designed for transforming pre-formed blanks into precision cylindrical components. Featuring a sophisticated punch and die assembly with optimized clearances and specialized clamping system to ensure consistent material flow during the drawing process.
Technical Specifications:
- •Material: CRCA (EDD) Grade Tool Steel
- •Sheet Thickness: 1.0mm
- •UTS: 270 N/mm²
- •Press Force: 7.7 Ton
- •Minimum Tonnage Required: 9.1 Ton
- •Die Thickness: 24.0mm
- •Clearance for Redrawing: 1.1mm per side

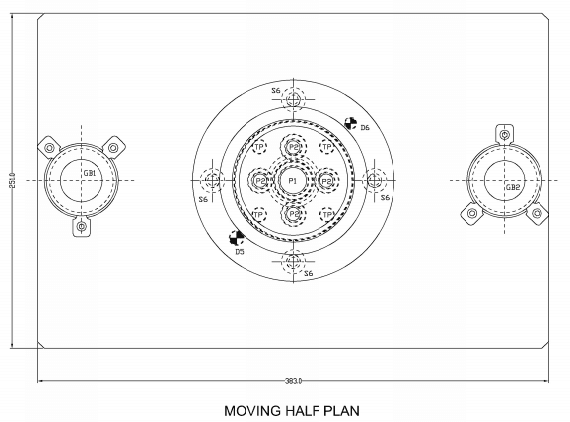

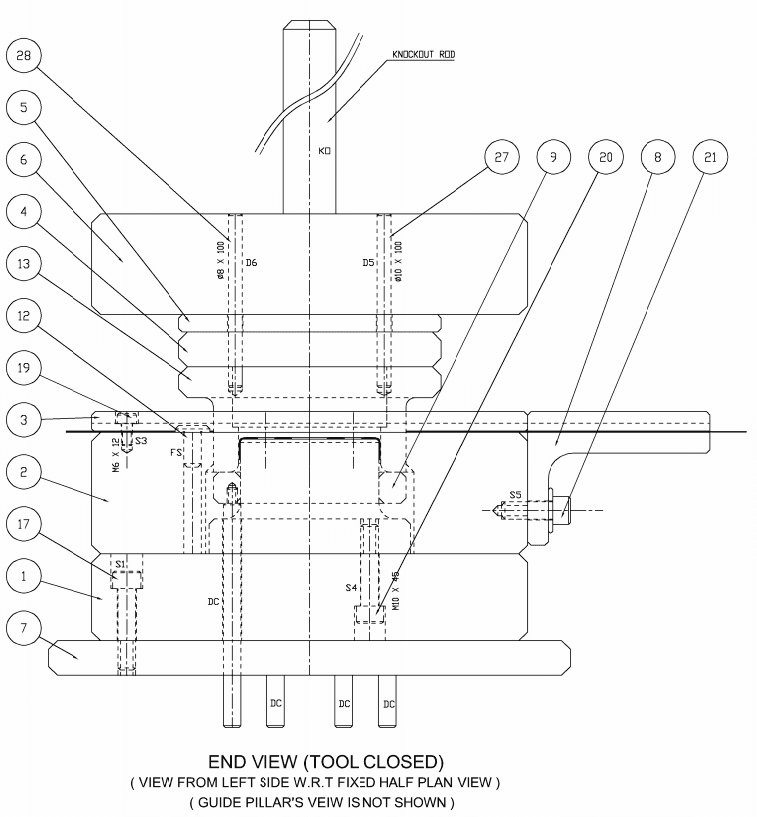

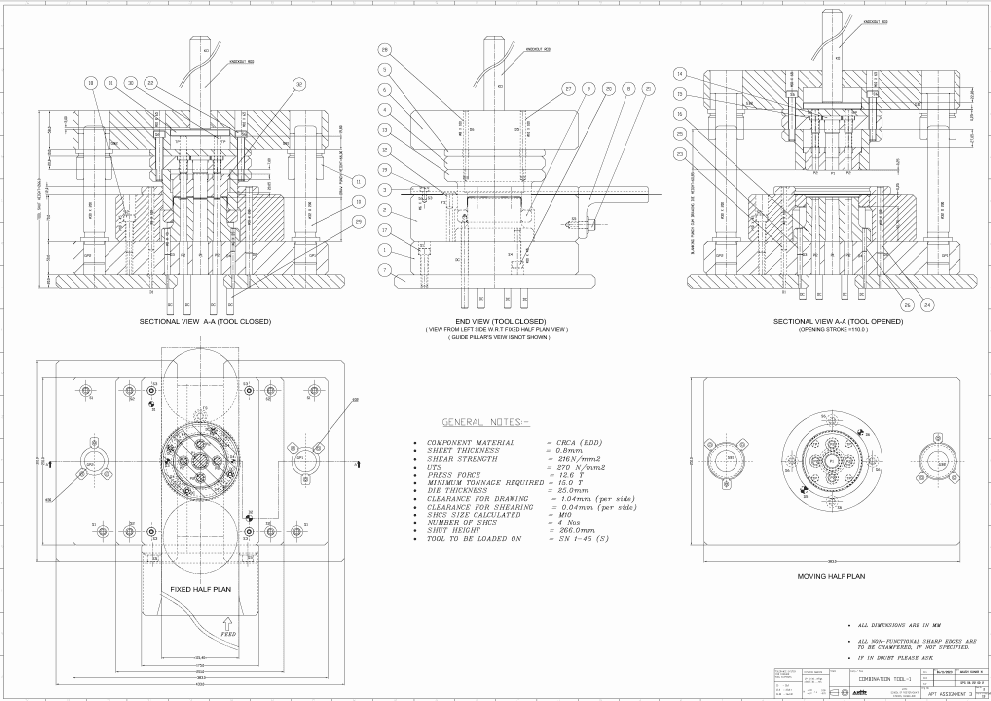

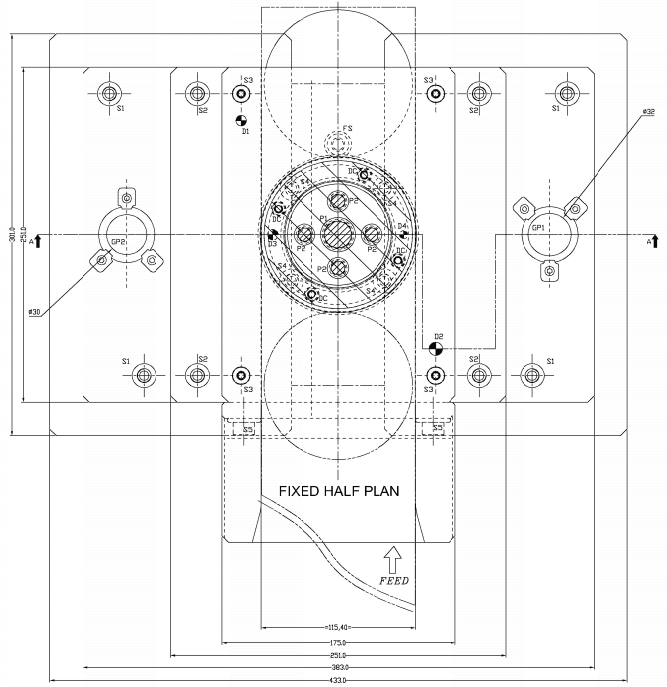

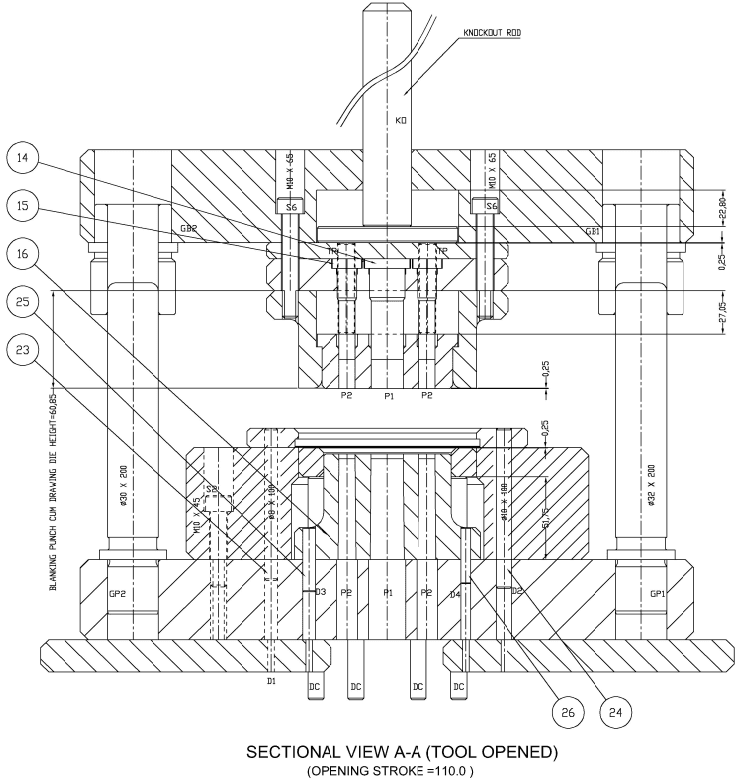

Combination Tool with Fixed & Moving Halves
Dual-action combination tool featuring fixed and moving half assemblies for complex operations.
This sophisticated combination tool integrates both fixed and moving halves to perform multiple operations in sequence. The design incorporates precision guide pillars, specialized stripper mechanisms, and advanced knockout systems for reliable production of complex sheet metal components.
Technical Specifications:
- •Configuration: Fixed & Moving Half Design
- •Guide System: Precision Pillar with Ball Cage
- •Knockout System: Spring-loaded with centralized ejection
- •Die Clearance: Optimized for material thickness
- •Applications: Precision circular components with multiple features
Stage Progression Die System
Multi-stage progressive die with optimized station layout for complex part production.
This advanced progressive die incorporates multiple stages carefully arranged to transform sheet metal through sequential operations. The system features precision pilot pins, optimal clearances, and strategically positioned cutting and forming elements.
Technical Specifications:
- •Material: Premium grade tool steel with specialized coatings
- •Configuration: Multiple stages with optimized progression
- •Pilot System: Precision locating pins for accurate positioning
- •Special Features: Stage-specific cutting clearances, optimized strip layout
- •Applications: Complex automotive and electronics components

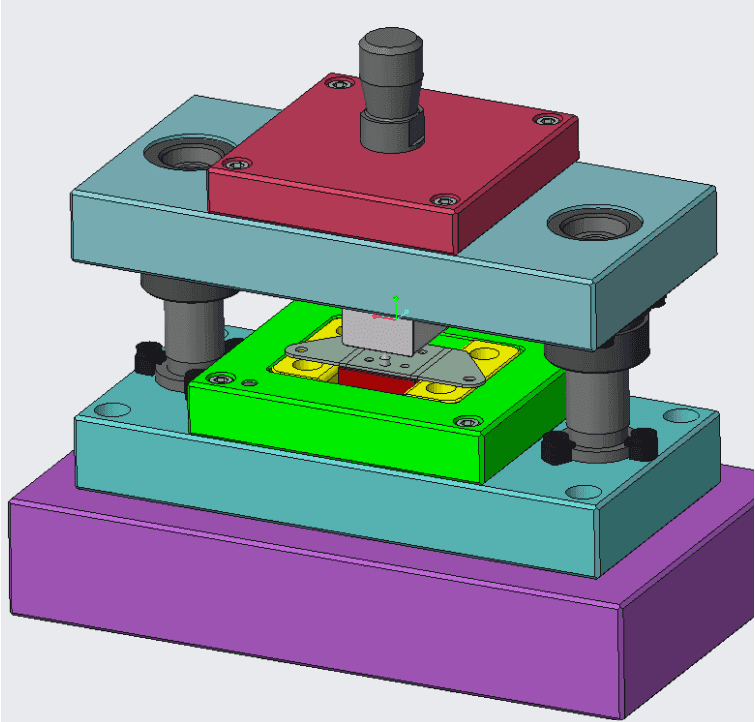

Precision Forming Die Assembly
Advanced forming die with complex geometry for precision sheet metal components.
This sophisticated forming die is designed for producing complex geometries in sheet metal components. The system incorporates precision-machined forming surfaces, optimal clearances, and specialized pressure distribution to ensure consistent part quality.
Technical Specifications:
- •Material: H13 Tool Steel with specialized inserts
- •Configuration: Multiple forming stages in single operation
- •Surface Treatment: Nitride hardening for extended life
- •Special Features: Optimized pressure distribution, specialized relief angles
- •Applications: Precision brackets and structural components

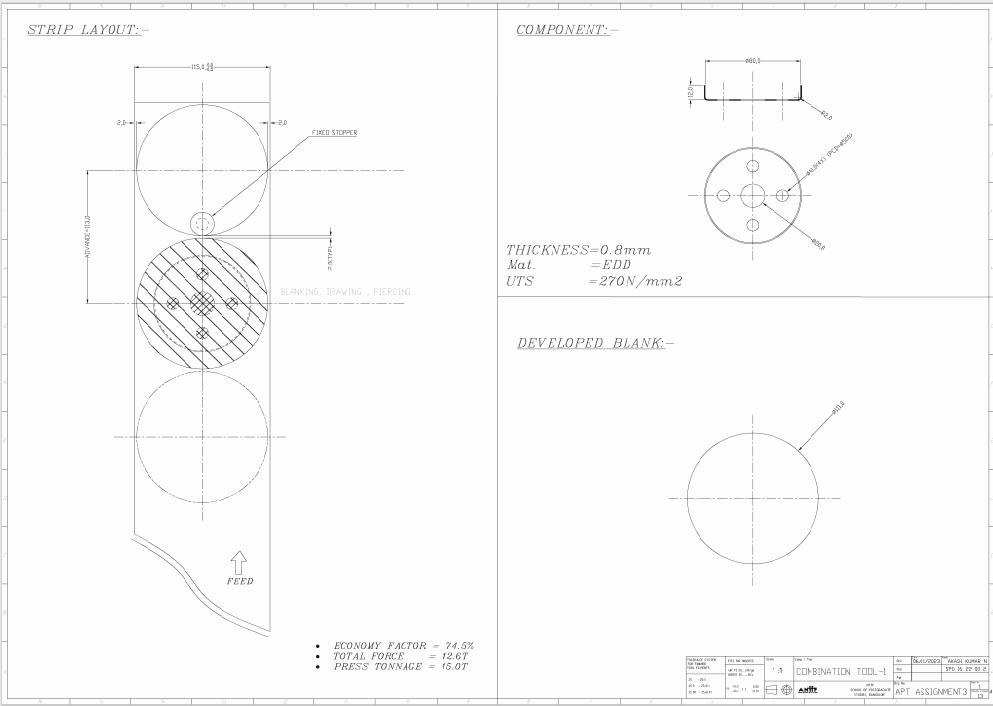

Strip Layout Design System
Optimized strip layout design for progressive tooling with maximum material utilization.
This precision-engineered strip layout maximizes material utilization while ensuring proper progression through multiple stations. The design incorporates optimal bridging, pilot holes, and strategic operation sequencing for consistent part quality.
Technical Specifications:
- •Material Optimization: ≥85% utilization rate
- •Progression: Multi-station operation sequence
- •Piloting: Precision locating system for ±0.02mm accuracy
- •Special Features: Optimized bridge design, scrap separation
- •Applications: High-volume production components
Deep Draw Forming Die System
Specialized die system for deep-drawn components with precision depth control.
This advanced deep draw forming die is engineered for producing complex deep-drawn components with consistent wall thickness. The system incorporates optimized draw radii, precise blank holding, and specialized pressure pads to control material flow during the drawing process.
Technical Specifications:
- •Material: Premium grade tool steel with chrome-plated surfaces
- •Draw Depth: Capable of 5:1 draw ratio depending on material
- •Blank Holding: Pressure-regulated system for optimal material flow
- •Special Features: Multi-stage drawing capability, adjustable pressure system
- •Applications: Deep-drawn housings and cylindrical components

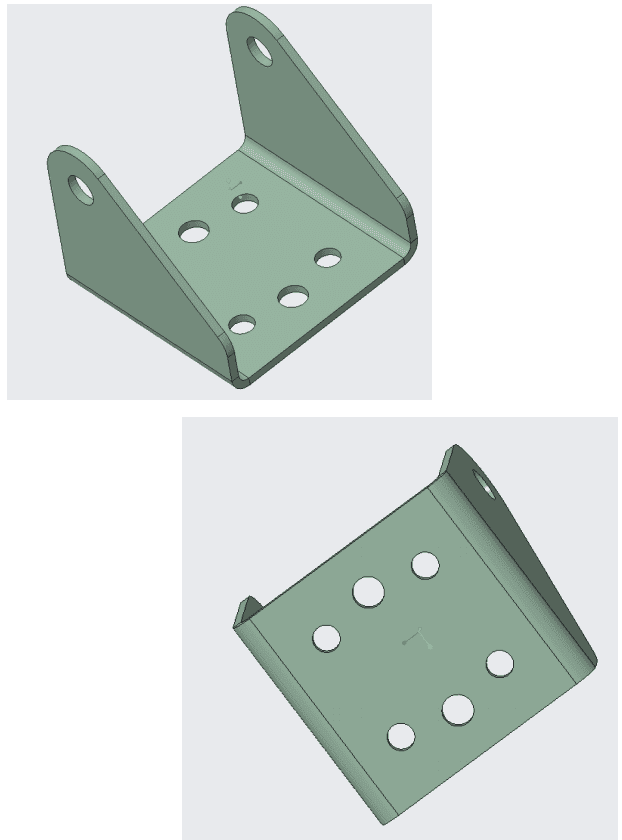

Advanced Bending Die Assembly
Precision bending die with optimized geometry for accurate angle formation.
This sophisticated bending die incorporates precisely engineered radii and clearances for consistent angle formation in sheet metal components. The design features specialized pressure distribution and optimized material support to minimize springback.
Technical Specifications:
- •Material: Premium tool steel with specialized surface treatments
- •Angle Accuracy: ±0.5° tolerance capability
- •Radius Control: Precision-ground forming surfaces
- •Special Features: Optimized pressure distribution, springback compensation
- •Applications: Precision brackets and formed components
Multi-Stage Drawing Tool System
Advanced multi-stage drawing tool for complex sheet metal components.
This sophisticated drawing tool system incorporates multiple stages to gradually form complex sheet metal components. The design features optimized draw radii, precise clearances, and specialized material flow control to ensure consistent part quality throughout the drawing sequence.
Technical Specifications:
- •Material: H13 Tool Steel with specialized coatings
- •Stages: Sequential drawing operations with optimal reduction ratios
- •Pressure Control: Regulated blank holding for optimal material flow
- •Special Features: Inter-stage transfers, optimized draw ratios
- •Applications: Complex drawn housings and enclosures
Precision Piercing and Blanking Tool
High-precision piercing and blanking tool for critical component production.
This advanced piercing and blanking tool is designed for producing precision components with tight tolerances. The system incorporates hardened cutting elements, optimal clearances, and specialized stripper mechanisms for clean cuts and minimal burr formation.
Technical Specifications:
- •Material: Premium grade tool steel with specialized heat treatment
- •Clearance: Optimized for material type and thickness
- •Stripper System: Spring-loaded positive action design
- •Special Features: Precision alignment, minimal burr formation
- •Applications: Precision electrical and electronic components
Complex Profile Forming Die
Advanced forming die for complex profile components with tight tolerances.
This sophisticated forming die is engineered for producing components with complex profiles and critical dimensions. The design incorporates precision-machined surfaces, optimal material flow paths, and specialized pressure distribution for consistent part quality.
Technical Specifications:
- •Material: Premium alloy tool steel with specialized surface treatments
- •Forming: Complex profile generation in single operation
- •Tolerances: Maintained to ±0.05mm on critical dimensions
- •Special Features: Optimized material flow, pressure distribution
- •Applications: Critical structural and functional components
Progressive Tool Strip Layout Design
Optimized progressive tool strip layout for complex multi-stage parts.
This precision-engineered progressive tool strip layout is designed for efficient production of complex parts through multiple operations. The layout incorporates optimal station spacing, strategic piloting, and efficient scrap removal for reliable high-volume production.
Technical Specifications:
- •Material Utilization: Optimized for minimal waste
- •Station Design: Sequential operations with precision indexing
- •Piloting: Multiple location points for accuracy throughout progression
- •Special Features: Optimized bridge design, efficient scrap separation
- •Applications: Complex multi-operation components
High-Precision Compound Tool Assembly
Advanced compound tool for multiple operations in a single stroke with exceptional precision.
This sophisticated compound tool incorporates multiple operations in a single press stroke, enabling efficient production of complex parts. The design features precision-machined components, optimal clearances, and specialized stripper mechanisms for reliable performance.
Technical Specifications:
- •Material: Premium grade tool steel with specialized coatings
- •Operations: Multiple simultaneous actions in single stroke
- •Tolerances: Maintained to ±0.02mm on critical features
- •Special Features: Precision alignment, optimized cutting clearances
- •Applications: High-precision components with multiple features
Our Press Tool Capabilities
Progressive Dies
Multi-station progressive tooling for high-volume production with complex forming and cutting operations.
Compound & Combination Dies
Advanced tooling that combines multiple operations in a single stroke for efficient part production.
Transfer & Multi-Slide Dies
Specialized tooling for complex geometries and deep draws that require multiple forming operations.
